1-35kV Cold-Shrinkable Cable Termination

Standards Compliance:
IEC 60502-4 "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um=1.2 kV) to 30 kV (Um=36 kV) - Part 4: Test requirements on accessories for cables with rated voltages from 6 kV (Um=7.2 kV) up to 30 kV (Um=36 kV)"
GB/T 12706.4 "Power cables with extruded insulation and their accessories for rated voltages from 1 kV up to 35 kV - Part 4: Test requirements on accessories for power cables with extruded insulation"
JB/T 10740.1 "Cold-shrinkable accessories for extruded insulated power cables with rated voltages from 6 kV up to 35 kV - Part 1: Terminations"
T/CEC 118 "Technical specification for cold-shrink cable accessories with rated voltages up to 35 kV"

Application Scope:
Rated voltage: 0.6/1 kV, 8.7/15 kV, 12/20 kV, 18/20 kV, 18/30 kV, 26/35 kV
Applicable cross-section: 25-630 mm²
Altitude: 0-4500 meters
Ambient temperature: -40 to +45°C
Pollution degree: Grade e

Product Models:

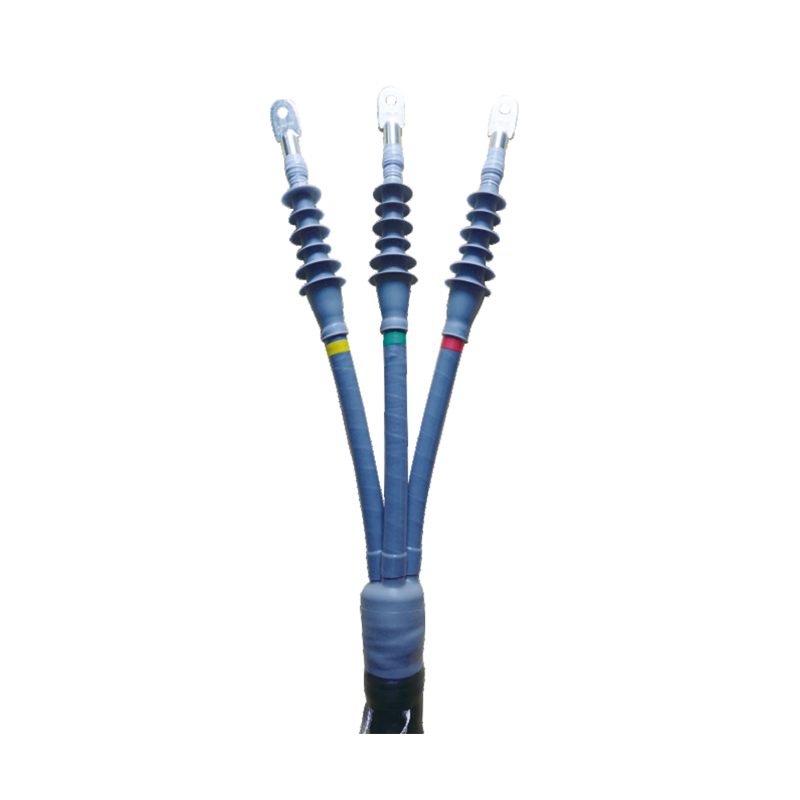

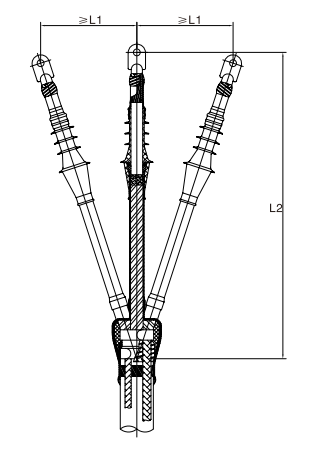

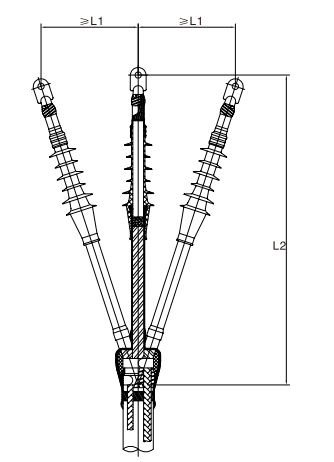

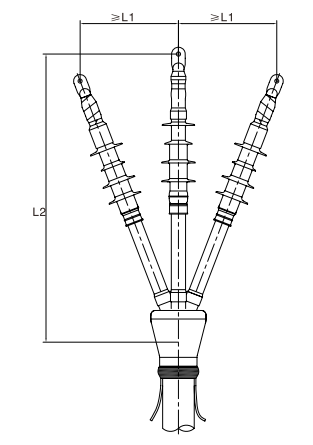

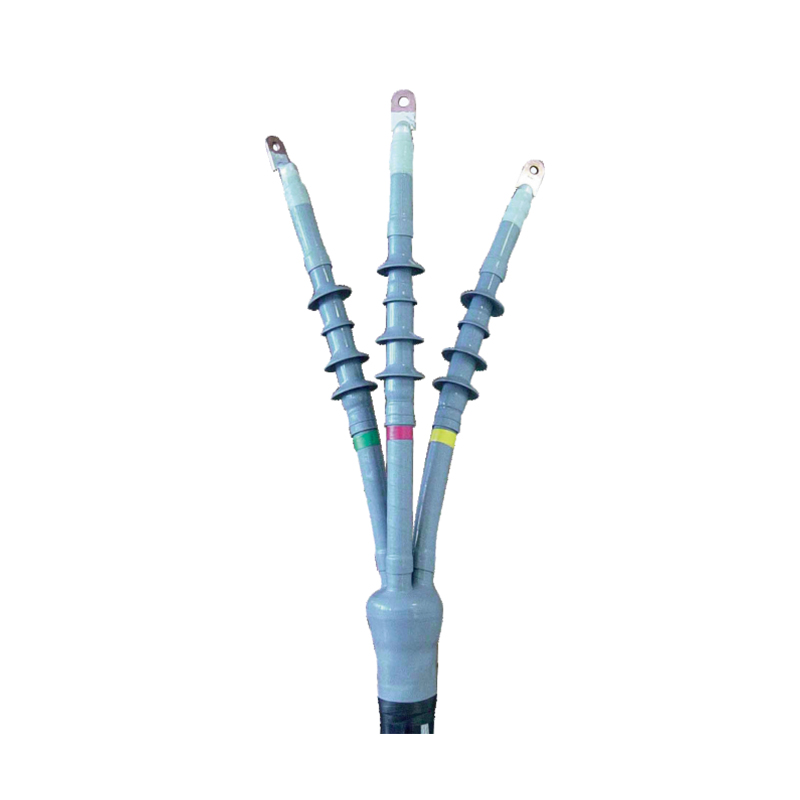

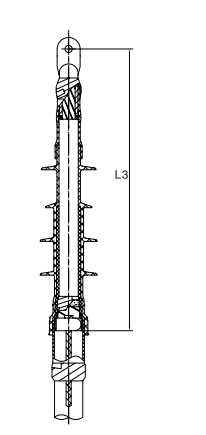

Three-core outdoor termination: WLS3-voltage-cross-section

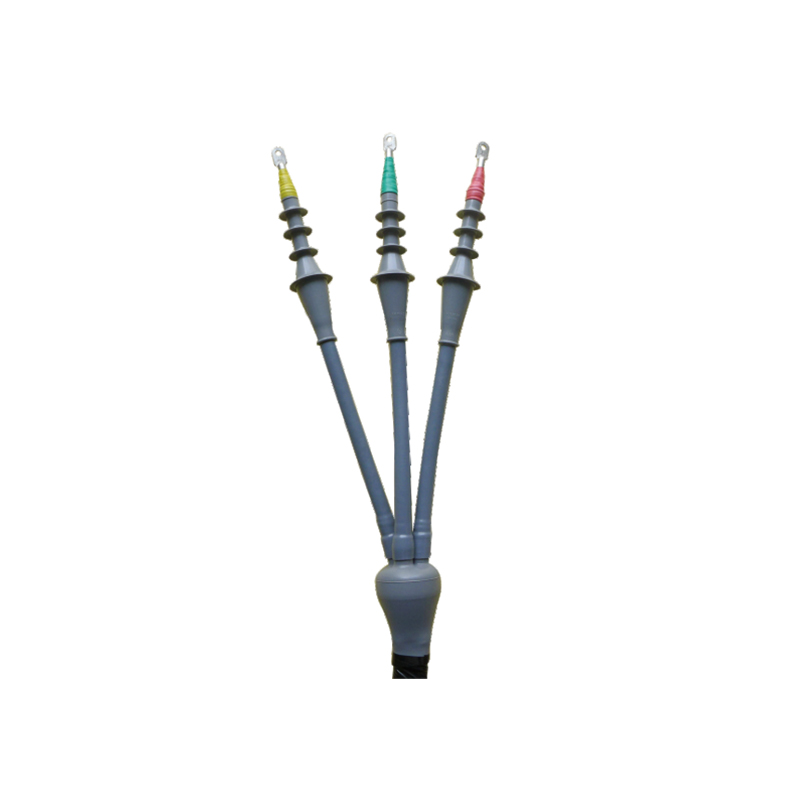

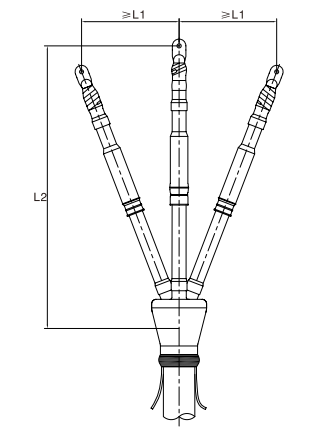

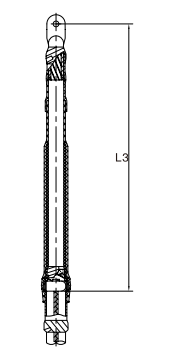

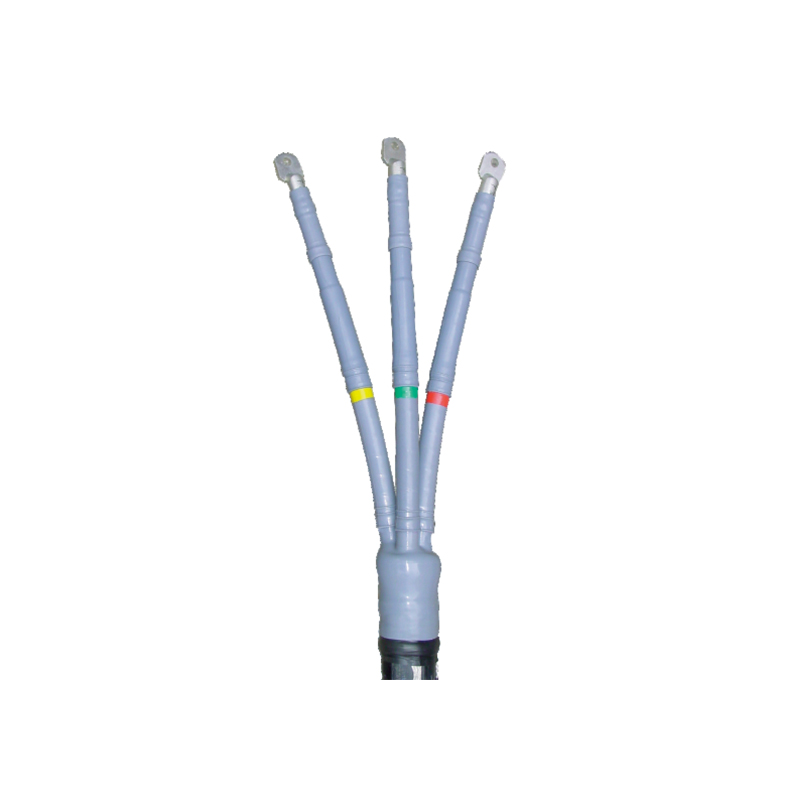

Three-core indoor termination: NLS3-voltage-cross-section

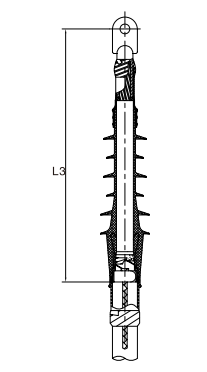

Single-core outdoor termination: WLS1-voltage-cross-section

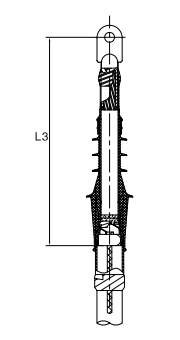

Single-core indoor termination: NLS1-voltage-cross section
Multi-core outdoor termination: WLS(cores)-voltage-cross section
Multi-core indoor termination: NLS(cores)-voltage-cross section
