1-35kV Heat Shrinkable Cable Intermediate Joint

Standards Compliance:
IEC 60502.4 "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1.2 kV) up to 30 kV (Um = 36 kV) - Part 4: Test requirements for accessories for power cables"
GB/T 12706.4 "Power cables with extruded insulation and their accessories for rated voltages from 1 kV (Um = 1.2 kV) up to 35 kV (Um = 40.5 kV) - Part 4: Test requirements for accessories for power cables"
JB/T 7829 "Heat shrinkable terminations for power cables with rated voltages from 1 kV (Um = 1.2 kV) up to 35 kV (Um = 40.5 kV)"

Application Range:
Rated Voltage: 8.7/15kV, 26/35kV
Applicable Cross-section: 25-630mm², 50-630mm²
Altitude: 0-4500m
Ambient Temperature: -40 to +45℃
Pollution Level: Pollution Degree III

Product Models:

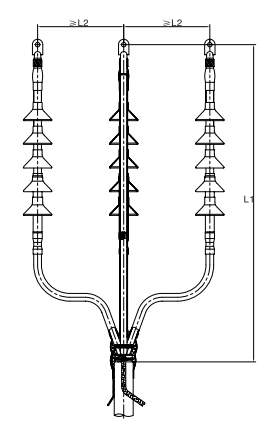

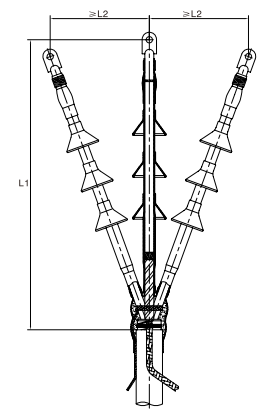

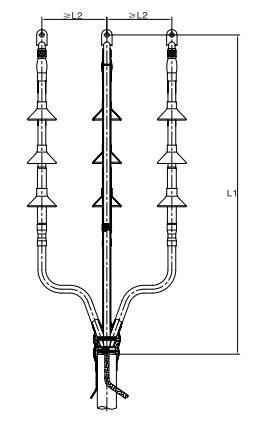

Three-core Outdoor Termination WRS3-Voltage-Cross-section

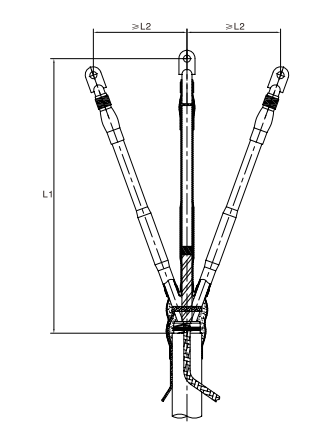

Three-core Indoor Termination NRS3-Voltage-Cross-section
Single-core Outdoor Termination WRS1-Voltage-Cross-section
Single-core Indoor Termination NRS1-Voltage-Cross-section

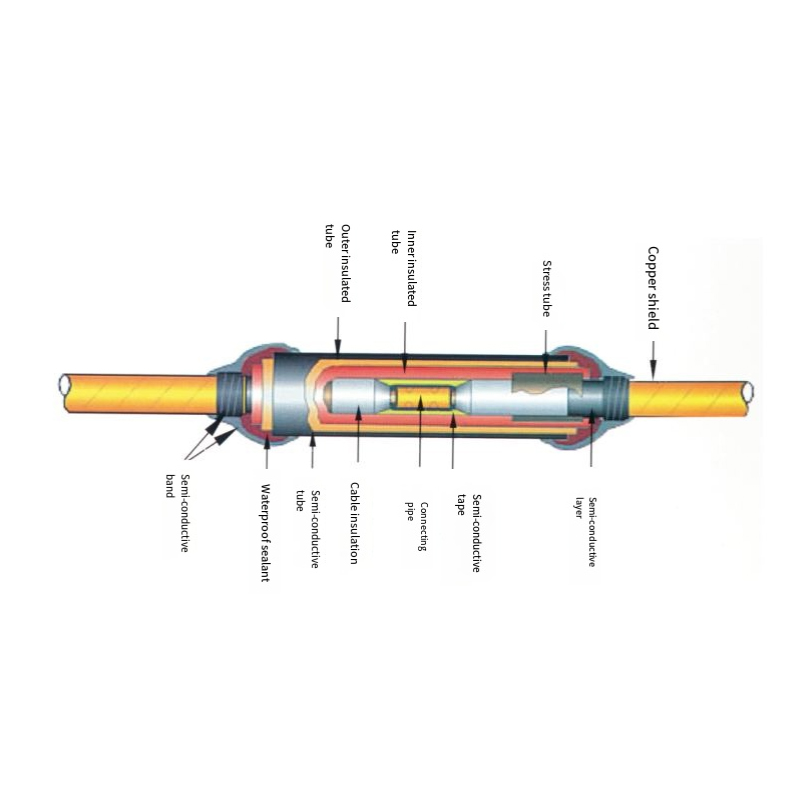

Three-core Mid-joint JRS3-Voltage-Cross-section
Single-core Mid-joint JRS1-Voltage-Cross-section

Product Features:
The 1-35kV Heat Shrinkable Cable Termination integrates waterproofing, stress control, and insulation, exhibiting electrical and mechanical performance.
Lightweight with easy installation.
Capable of long-term operation in various harsh environmental conditions, with wide application areas.
