35-220kV Wall-mounted Cable Protection Grounding Box
35-220kV Cable Grounding Box

35-220kV Wall-mounted Cable Protection Grounding Box

Product Overview:

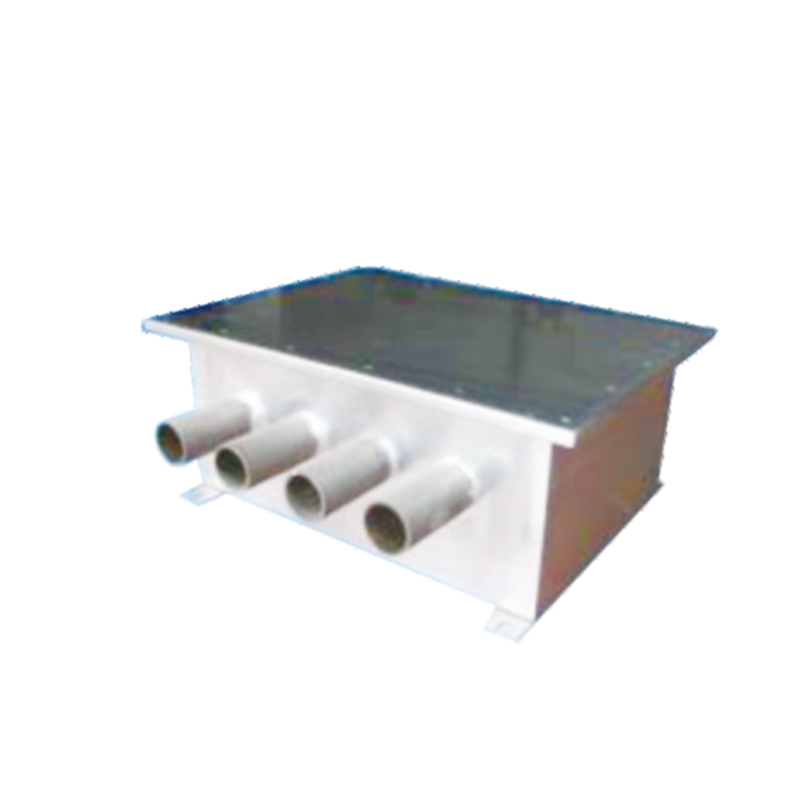

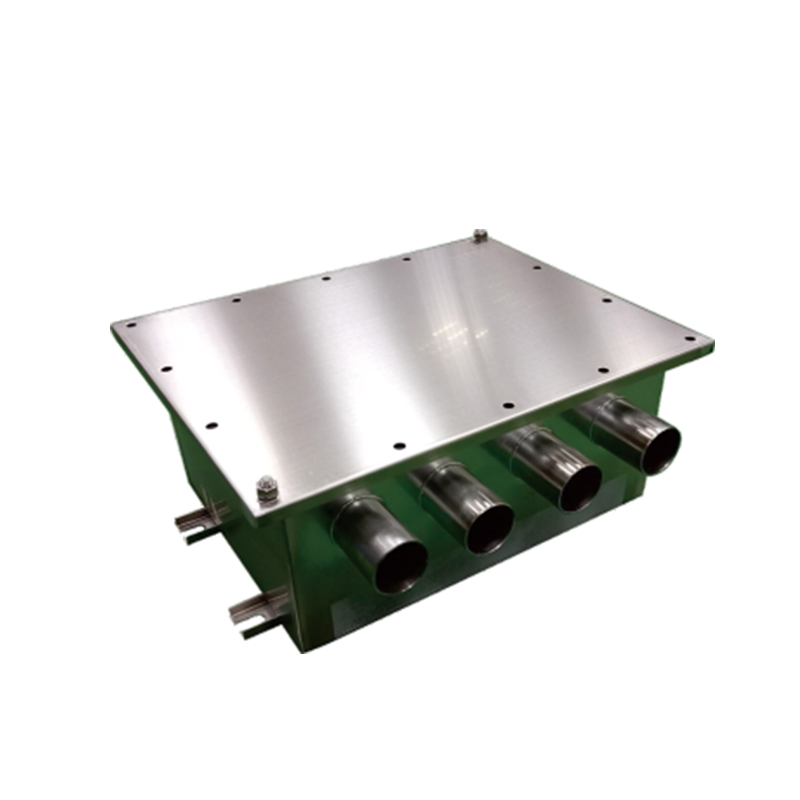

The 35-220kV Wall-mounted Grounding Box is designed to be mounted on a wall or bracket. It is typically installed at a higher position above the ground for easier access and maintenance. The wall-mounted installation makes it particularly suitable for situations with limited space or where elevation from the ground is necessary.

Product Features:

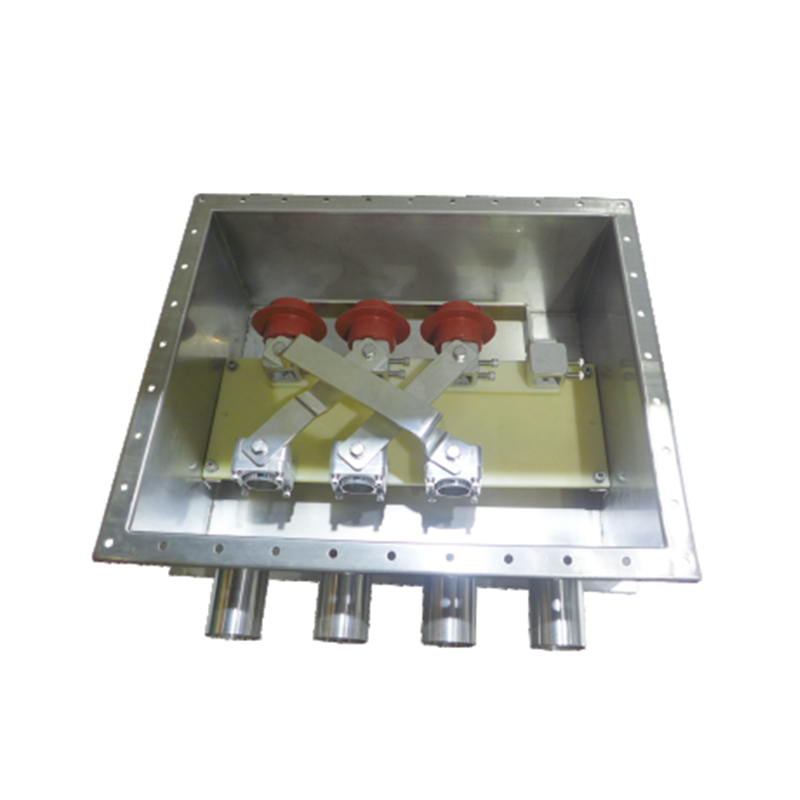

Grounding Box: The grounding box shell and connecting bolts are all made of stainless steel, ensuring corrosion resistance and performance.
Conductive Connections: All conductive connections use a bolt compression structure, making installation easy and facilitating preventive testing.
Internal Protector: High-quality silicone rubber composite zinc oxide protectors are used for internal protection.
Conductive Components: All conductive components are tin-plated, providing reliable conductivity. Insulating support components are treated for moisture resistance.

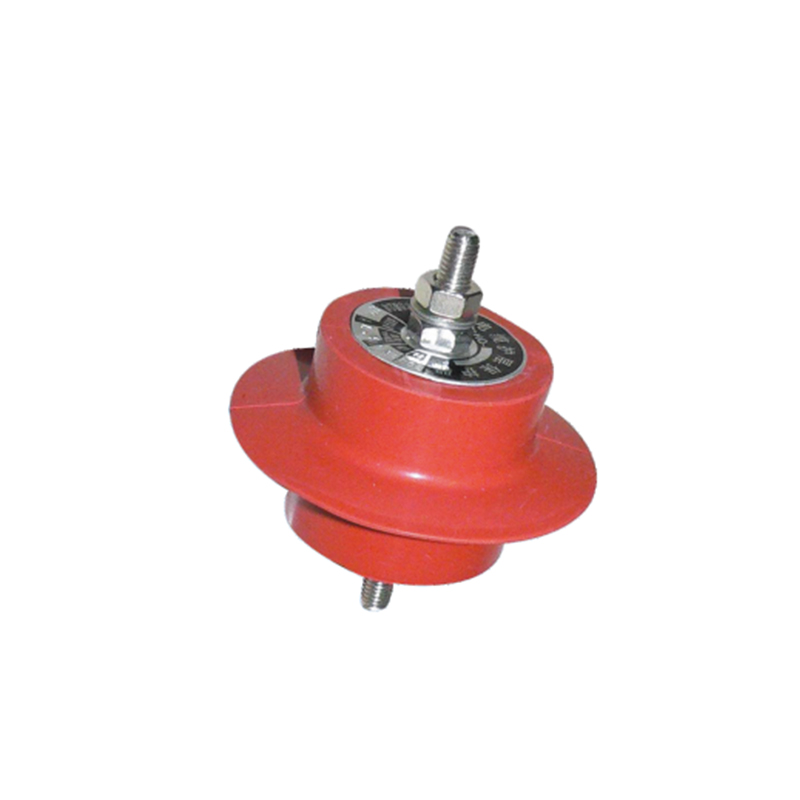

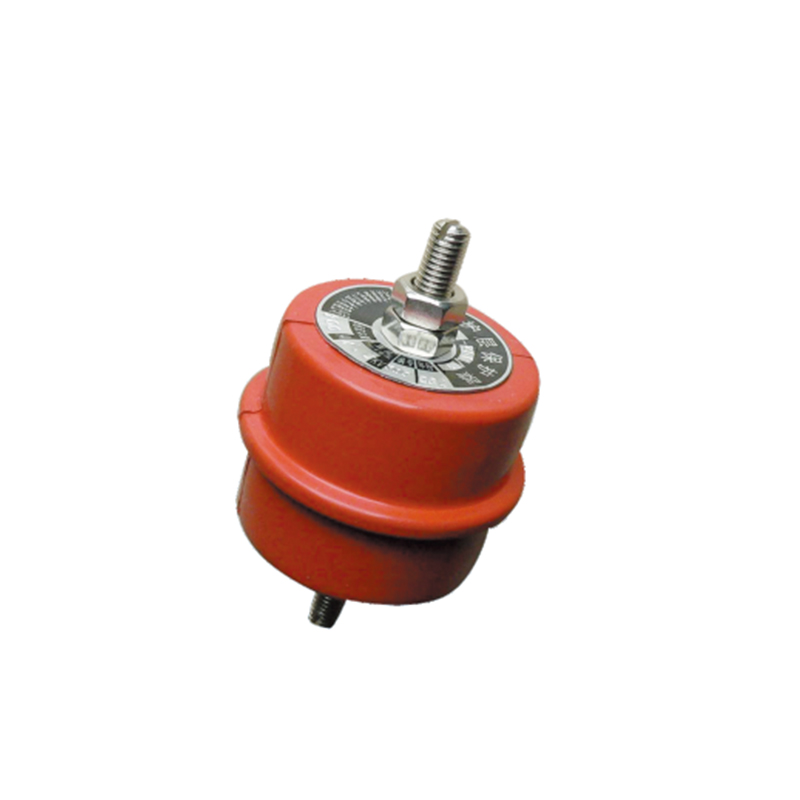

35kV-220kV Single-core High Voltage Cable Sheath Protector Product Features:
Good Protection Characteristics: Effectively limits induced overvoltage and fault overvoltage on the cable’s metal shielding layer (or metal sheath).
Nice Voltage-Current Characteristics: Features a high current capacity and a flat protection curve.
Silicone Rubber Outer Layer: The outer silicone rubber layer is formed in one process, providing good sealing performance, safety, explosion protection, and maintenance-free operation.
