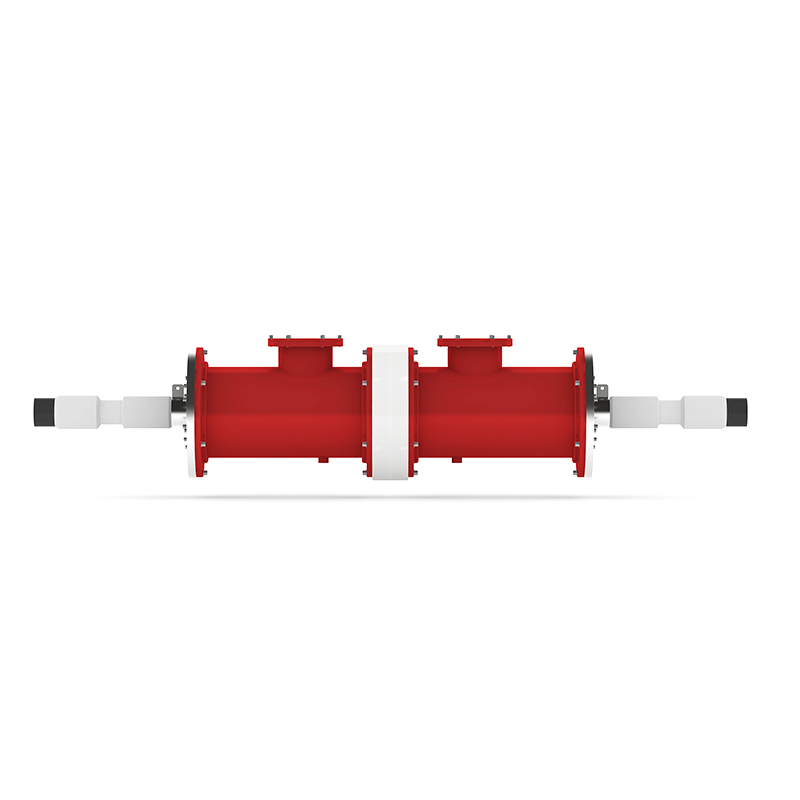

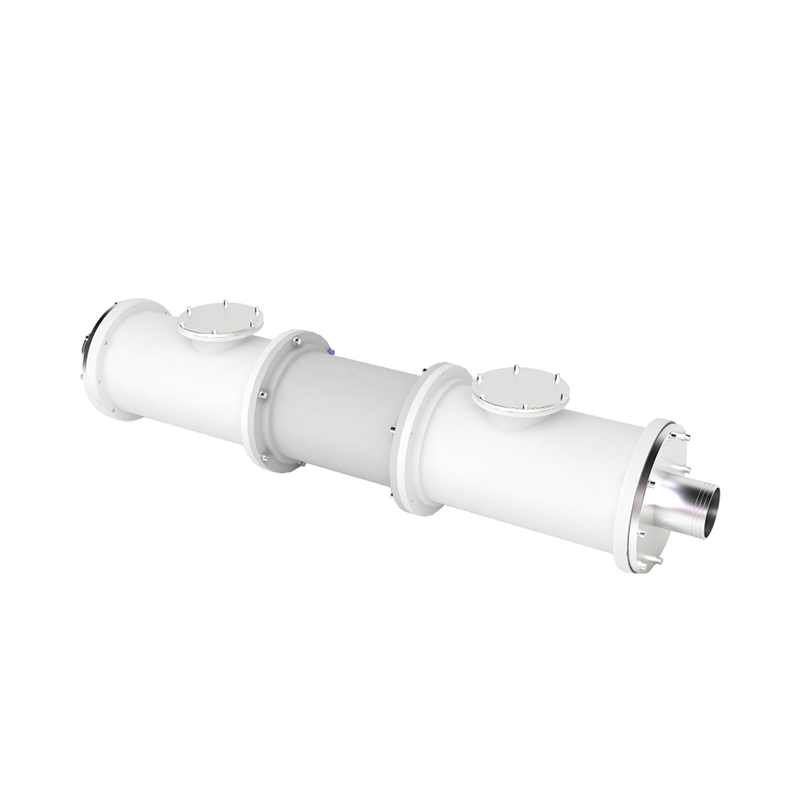

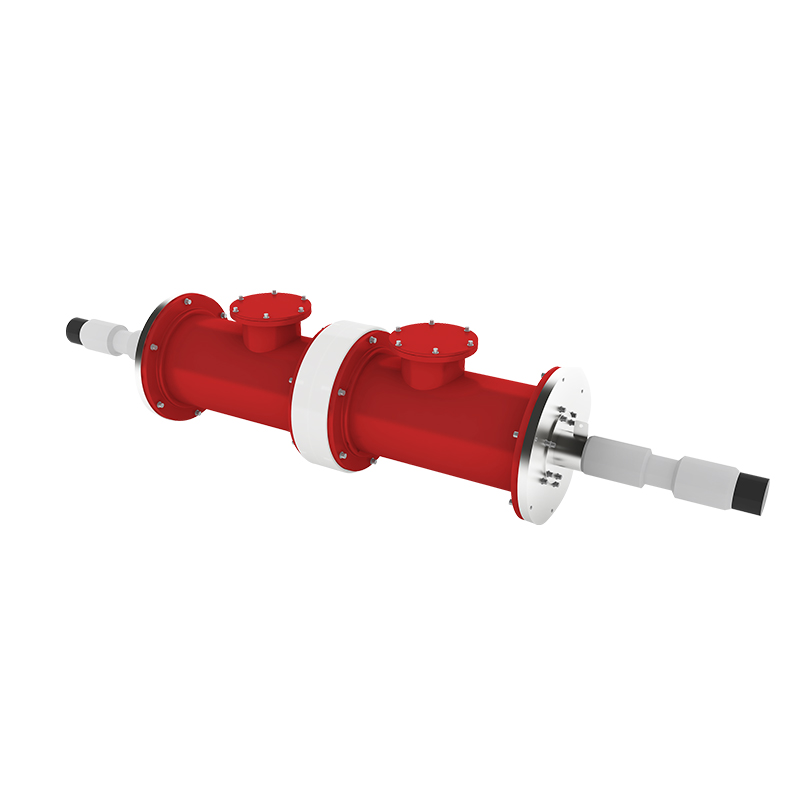

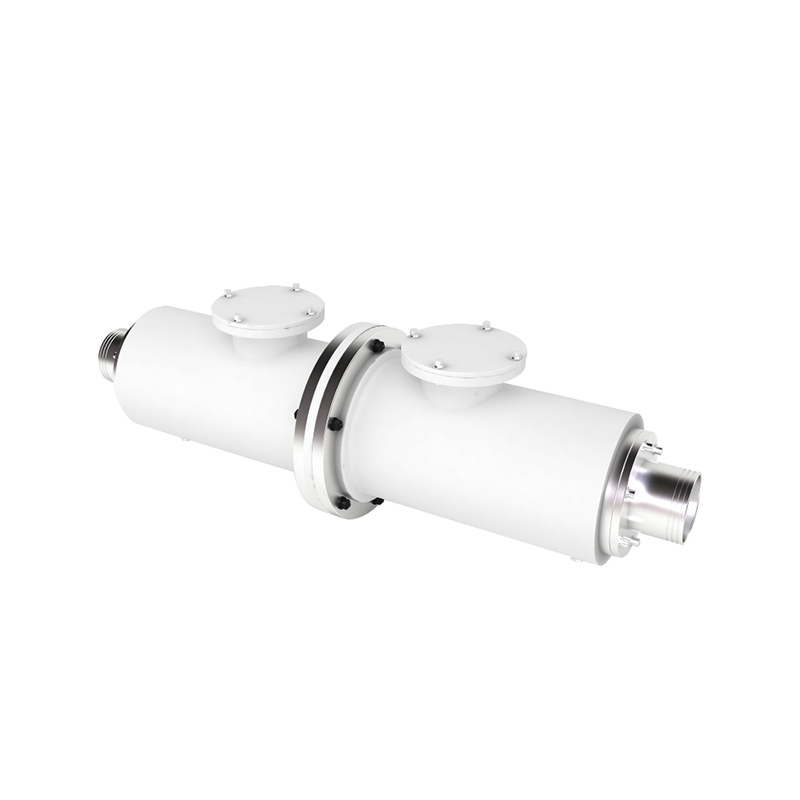

110-220kV Cable Quick Repair Joint

Standards Compliance:
E660840-2011 "Extruded Insulation Cables and Accessories for Rated Voltages Above 30kV (Um=36kV) Up to 150kV (Um=170kV)"
IEC 62067-2011 "Extruded Insulation Cables and Accessories for Rated Voltages Above 150kV (Um=170kV) Up to 500kV (Um=550kV)"
GB/T 18890.3-2015 "Cross-Linked Polyethylene Insulated Power Cables and Their Accessories for Rated Voltage 220kV – Part 3: Cable Accessories"
GB/T 11017.3-2014 "Cross-Linked Polyethylene Insulated Power Cables and Their Accessories for Rated Voltage 110kV – Part 3: Cable Accessories"

Application Range:
Rated Voltage: 64/110kV, 127/220kV
Applicable Cross-Sectional Area: 240-1600mm², 400-2500mm²

Product Model:
Model: YJJTK

Product Features:
Verified by Electric Field Simulation: Meets design requirements.
Electrical Performance: Partial discharge levels to national standards.
Stable Performance: Successfully passed comprehensive type tests.
Rapid Installation Time: 110kV products can be installed within 2.5 hours, and 220kV products within 4 hours.
Outstanding Sealing Performance: Ensures long-term, energized operation
