GJG-Ⅱ Type Power Safety Tool Cabinet

Introduction
Our company manufactures the GJG series of electrical safety tool cabinets, designed in accordance with the technical standards of the Ministry of Energy's "DL/T 1145-2009 Insulation Tool Cabinet" and based on the feedback from power industry professionals regarding safety tool cabinet improvements. This innovative product has been jointly developed by our R&D team and electrical system engineering experts. The tool cabinets are equipped with our independently developed intelligent control system and are categorized into Type I, Type II, and Type III, based on different storage conditions for electrical tools, to provide an storage environment and extend the service life of insulation tools.

The cabinet structure is designed to meet JB/T8678 and JB/T6753.1~6753.4 standards, with a shell made of high-quality cold-rolled steel sheets, stamped and assembled. The cabinets feature an artistic electrostatic spraying finish, and the shell's protection level complies with GB4208 standards. The products have been tested by the Electrical Safety Tool Quality Supervision and Testing Center of the Ministry of Electricity, with all technical indicators meeting the "DL/T 1145-2009 Insulation Tool Cabinet" standards, making them ideal for storing and preserving insulation tools.

LCD Display Intelligent Temperature and Humidity Controller (Independently Developed)

Type II and Type III cabinets are equipped with the latest microcomputer chip controller, independently developed by our company. All data collection and functional outputs are completed within the controller, simplifying the circuit structure and ensuring system stability. Users can set the desired temperature and humidity parameters, and the controller detects and analyzes the internal temperature and humidity, intelligently activating the heating, dehumidifying, and fan systems to achieve the desired regulation.

Main Parameters
Operating Power Supply: AC220V±20V
Rated Power: ≤3W
Maximum Current: 5A
Temperature Control Range: 5℃-40℃
Humidity Control Range: ≤60% RH
Operating Environment: -10℃-40℃
Ambient Humidity: ≤85% RH

Type II Safety Tool Cabinet: Features, Functions, and Applications

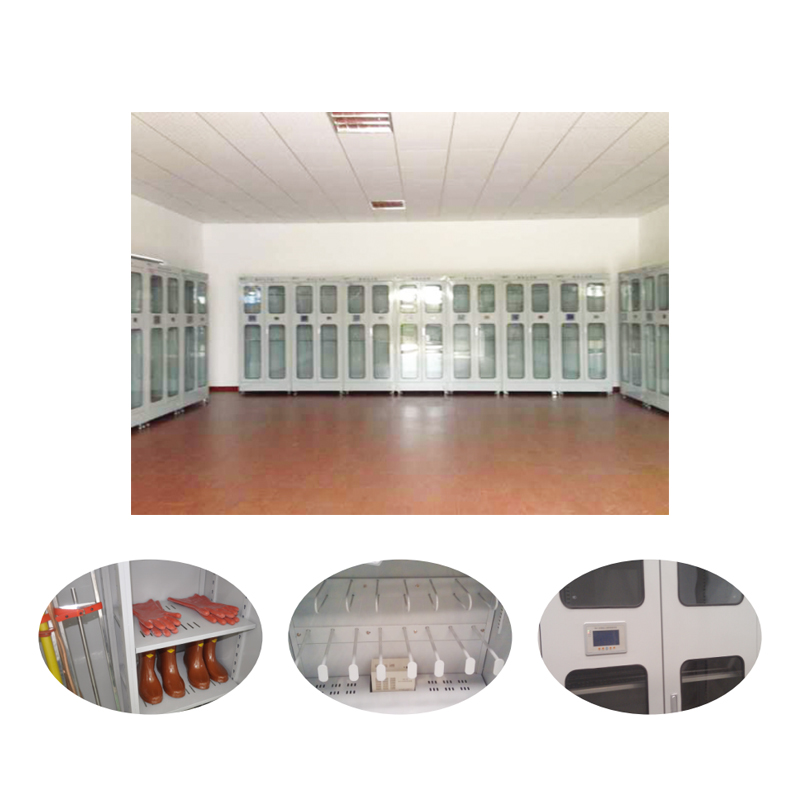

The Type II safety tool cabinet is designed for storing hard insulation tools, soft insulation tools, testing tools, and shielding equipment. The constant temperature and dehumidification device is integrated and controlled by an intelligent temperature and humidity controller, maintaining the cabinet's internal temperature between 5℃ and 40℃, and humidity below 60%.

Main Functions:
1. Intelligent temperature and humidity control
2. Voice broadcast function
3. Real-time item statistics
4. Next inspection date reminder
5. Real-time lighting control
6. Safety alarm function
