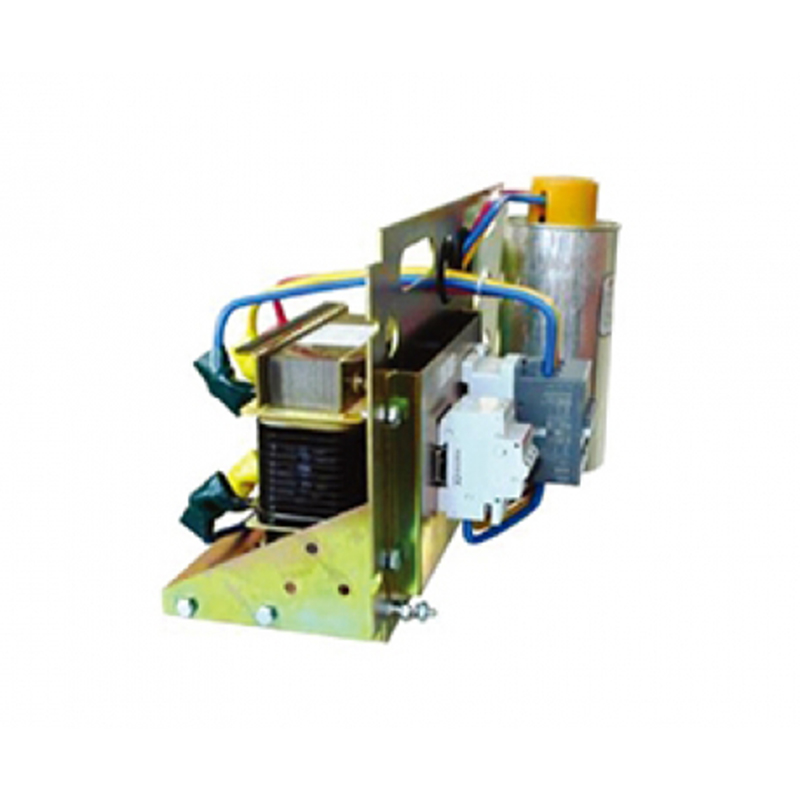

MF- Passive LC Filter Module

Application
The MF- Passive LC Filter Module is used in passive filter devices to filter or suppress harmonics in the power grid while providing reactive power compensation.
It is suitable for harmonic mitigation and retrofitting projects.

Product Features
Utilizes specialized filter capacitors (AK), reactors (SR), and high-quality switching components for high reliability and long lifespan.
High tuning precision, eliminating the need for on-site adjustments.
Simplifies filter design.

Technical Parameters
Rated Voltage: 0.45V, 0.48V, 0.525V
Rated Capacity: 20~60KVar
Reactance Rate: Configurable according to design requirements
Loss: ≤5W/KVar
Ground Insulation: 3000V/1min
Maximum Allowable Overvoltage: 1.1Un (Un is the rated voltage)
Maximum Allowable Overcurrent: 1.3In (In is the rated current)
Self-Discharge: Voltage drops below 75V within 3 minutes after power off.
Operating Environment: Indoor, altitude ≤2000m, ambient temperature -25℃~+50℃, relative humidity ≤90%
