Custom Assembled High Voltage Capacitor

Home / Products / High Voltage Capacitors and Equipment / High Voltage Capacitors / Assembled High Voltage Capacitor
Assembled High Voltage Capacitor
  • Assembled High Voltage Capacitor
High Voltage Capacitors

Assembled High Voltage Capacitor

Rated Values Range for Assembled High Voltage Capacitor:
Rated Voltage Range: 3kV-46kV
Rated Capacity Range: 600kvar-10000kvar

The integrated parallel capacitor is mainly composed of the body, casing, oil compensator, outlet bushing, etc.
The body is composed of a certain number of fully sealed small unit capacitors connected in series, with each component of the small unit capacitor connected in series with an internal fuse.
The casing is made of segmented quality steel plates, filled with insulation cooling oil inside, and the oil flows along the longitudinal and transverse oil passages in the core body to dissipate the heat emitted by the small unit capacitors to the box wall.
According to the structure of the oil compensator, it can be divided into: ordinary oil-pillow type and fully sealed integrated parallel capacitor. In the oil-pillow type integrated parallel capacitor, the interior of the casing is connected to the atmosphere through a breather on the oil pillow, and the expansion volume of the insulation oil is compensated by the oil pillow; in the fully sealed integrated parallel capacitor, the insulation oil inside the casing is isolated from the atmosphere, which can better ensure the quality of the insulation oil. The volume change of the insulation oil due to temperature change is compensated by a metal expander, with a small product volume and elegant appearance.

According to the wiring requirements and protection methods, the number of outlet bushings of the integrated parallel capacitor also varies: single-phase integrated parallel capacitors have two outlet bushings, which can be used for open delta protection; there are also three outlet bushings for differential voltage protection. Three-phase integrated parallel capacitors have 6 outlet bushings, one at each end of each phase, with internal wiring in type III, each phase exists independently and is not interconnected. The adjustable capacitance integrated parallel capacitor has 7 or 9 outlet bushings, with capacitance adjustment forms including equal division (1/2) and unequal division (1/3, 2/3).

Main Technical Performance:

1. Voltage Application Range: 6kV-35kV.
2. Capacity Application Range: 1000kvar-10000kvar.
3. The continuous operating voltage of the capacitor is not greater than 1.05Un, and it can operate for 8 hours every 24 hours at 1.1Un.
4. The capacitor allows continuous operation under stable overcurrent with a root mean square value not exceeding 1.3ln due to overvoltage and harmonics.
5. The capacitance deviation of the capacitor is 0~+5% of the rated value, and the ratio of the largest to the smallest capacitance between any two terminal lines of the three-phase capacitor is not greater than 1.02.
6. The loss tangent of the capacitor at power frequency is not greater than 0.0003 (20°C).

Contact Us
PREV：No previous article
NEXT：High Voltage Parallel Capacitor Bank

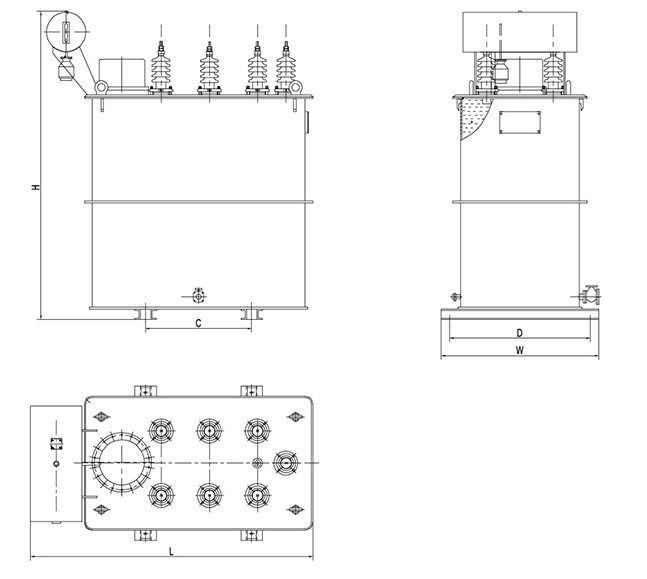

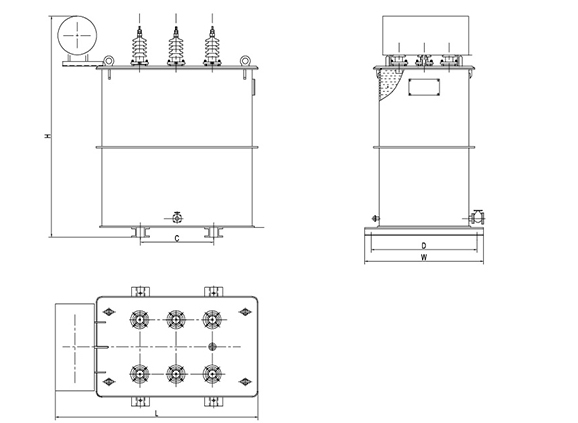

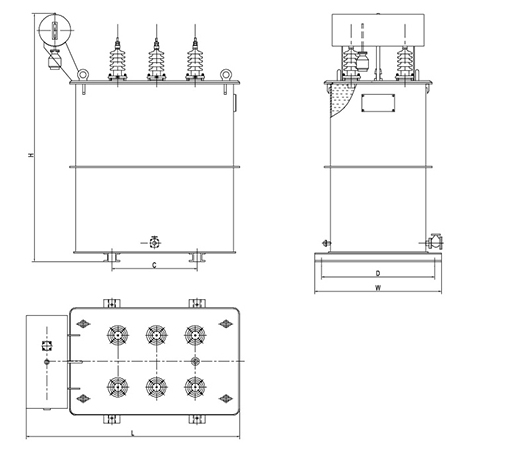

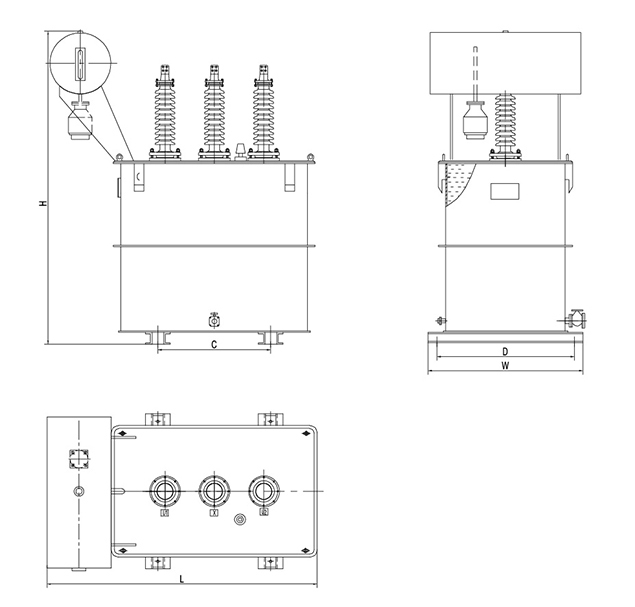

  • Figure 1 6kV, 10kV collective parallel capacitor Figure 2 10kV fully sealed integrated parallel capacitor Figure 3 10kV capacity adjustable collective parallel capacitor Figure 4 35kV collective parallel capacitor

    Serial No. Model Specifications Rated voltage Rated Capacity Overall dimensions (mm) Installation size (mm) weight Figure No. Remark
    (kV) (kvar) L W H C D (kg)
    1 BAMH6.6/√3-750-1×3W 6.6/√3 750 1385 760 1530 550 700 790 1
    2 BAMH6.6/√3-900-1×3W 900 1500 850 1600 550 720 850 1
    3 BAMH6.6/√3-1200-1×3W 1200 1500 850 1740 550 720 920 1
    4 BAMH6.6/√3-1500-1×3W 1500 1500 850 1900 550 720 1050 1
    5 BAMH6.6/√3-1800-1×3W 1800 1600 1150 1700 660 1050 1500 1
    6 BAMH6.6/√3-2400-1×3W 2400 1600 1150 1750 660 1050 2000 1
    7 BAMH6.61√3-3000-1×3W 3000 1600 1150 2020 660 1050 2200 1
    8 BAMH6.6/√3-3600-1×3W 3600 2000 1150 1920 660 1050 3000 1
    9 BAMH6.6/√3-4800-1×3W 4800 2000 1150 2125 660 1050 3400 1
    10 BAMH7.2/√3-750-1×3W 7.2/√3 750 1385 760 1530 550 700 790 1
    11 BAMH7.2/√3-900-1×3W 900 1500 850 1600 550 720 850 1
    12 BAMH7.2/√3-1200-1×3W 1200 1500 850 1740 550 720 920 1
    13 BAMH7.2/√3-1500-1×3W 1500 1500 850 1900 550 720 1050 1
    14 BAMH7.2/√3-1800-1×3W 1800 1600 1150 1700 660 1050 1500 1
    15 BAMH7.2/√3-2400-1×3W 2400 1600 1150 1750 660 1050 2000 1
    16 BAMH7.2/√3-3000-1×3W 3000 1600 1150 2020 660 1050 2200 1
    17 BAMH7.2/√3-3600-1×3W 3600 2000 1150 1920 660 1050 3000 1
    18 BAMH7.2/√3-4800-1×3W 4800 2000 1150 2125 660 1050 3400 1
    19 BAMH11/√3-750-1×3W 11/ √3 750 1385 760 1530 550 700 790 1
    20 BAMH11/√3-900-1×3W 900 1500 850 1600 550 720 850 2 Fully sealed
    twenty one BAMH11/√3-1200-1×3W 1200 1500 850 1740 550 720 920 1
    twenty two BAMH11/√3-1500-1×3W 1500 1500 850 1900 550 720 1050 1
    twenty three BAMH11/√3-1800-1×3W 1800 1600 1150 1700 660 1050 1500 2 Fully sealed
    twenty four BAMH11/√3-2400-1×3W 2400 1600 1150 1750 660 1050 2000 2 Fully sealed
    25 BAMH11/√3-3000-1×3W 3000 1600 1150 2020 660 1050 2200 1
    26 BAMH11/√3-3600-1×3W 3600 2000 1150 1920 660 1050 3000 1
    27 BAMH11/√3-4800-1×3W 11/ √3 4800 2000 1150 2125 660 1050 3400 1
    28 BAMH11√3-6000-1×3W 6000 2240 1450 1900 820 1350 4200 2
    29 BAMH11/√3-7500-1×3W 7500 2360 1500 2290 820 1400 6000 1 Fully sealed
    30 BAMH11/√3-10000-1×3W 10000 2360 1500 2700 820 1400 6000 1
    31 BAMH12/√3-750-1×3W 121 √3 750 1385 760 1530 550 700 790 1
    32 BAMH12/√3-900-1×3W 900 1500 850 1700 550 720 850 1
    33 BAMH12/√3-1200-1×3W 1200 1500 850 1650 550 720 920 2 Fully sealed
    34 BAMH12/√3-1500-1×3W 1500 1500 850 1900 550 720 1050 1
    35 BAMH12/√3-1800-1×3W 1800 1600 1150 1800 660 1050 1500 1
    36 BAMH12/√3-2400-1×3W 2400 1600 1150 1750 660 1050 2000 2 Fully sealed
    37 BAMH12/√3-3000-1×3W 3000 1600 1150 2020 660 1050 2200 1
    38 BAMH12 √3-3600-1×3W 3600 2000 1150 1920 660 1050 3000 1
    39 BAMH12/√3-4800-1×3W 4800 2000 1150 2125 660 1050 3400 1
    40 BAMH12/√3-6000-1×3W 6000 2240 1450 1900 820 1350 4200 2 Fully sealed
    41 BAMH12/√3-7500-1×3W 7500 2360 1500 2290 820 1400 6000 1
    42 BAMH12/√3-10000-1×3W 10000 2360 1500 2700 820 1400 6800 1
    43 BAMH11-1200+1200-3W 11 1200+1200 1600 1150 1830 660 1050 2000 3 Capacity Adjustment
    44 BAMH11-800+1600-3W 800+1600 1920 1150 1500 660 1050 2000 3 Capacity Adjustment
    45 BAMH11-1500+1500-3W 1500+1500 2000 1150 2270 660 1050 2400 3 Capacity Adjustment
    46 BAMH11-1000+2000-3W 1000+2000 2240 1250 1970 660 1150 2600 3 Capacity Adjustment
    47 BAMH11-1800+1800-3W 1800+1800 2000 1450 1920 660 1350 3250 3 Capacity Adjustment
    48 BAMH11-1200+2400-3W 1200+2400 2240 1250 2070 660 1150 3400 3 Capacity Adjustment
    49 BAMH11-2400+2400-3W 2400+2400 2000 1300 2410 820 1200 4000 3 Capacity Adjustment
    50 BAMH11-1600+3200-3W 1600+3200 2240 1250 2270 660 1150 4000 3 Capacity Adjustment
    51 BAMH11-2000+4000-3W 2000+4000 2240 1450 2150 820 1350 4500 3 Capacity Adjustment
    52 BAMH11-5000+5000-3W 5000+5000 2360 1500 2700 820 1400 6900 3 Capacity Adjustment
    53 BAMH12-1200+1200-3W 12 1200+1200 1600 1150 1830 660 1050 2000 3 Capacity Adjustment
    54 BAMH12-800+1600-3W 800+1600 1920 1150 1500 660 1050 2000 3 Capacity Adjustment
    55 BAMH12-1500+1500-3W 1500+1500 2000 1150 2270 660 1050 2400 3 Capacity Adjustment
    56 BAMH12-1000+2000-3W 1000+2000 2240 1250 1970 660 1150 2600 3 Capacity Adjustment
    57 BAMH12-1800+1800-3W 1800+1800 2000 1450 1920 660 1350 3250 3 Capacity Adjustment
    58 BAMH12-1200+2400-3W 1200+2400 2240 1250 2070 660 1150 3400 3 Capacity Adjustment
    59 BAMH12-2400+2400-3W 2400+2400 2000 1300 2410 820 1200 4000 3 Capacity Adjustment
    60 BAMH12-1600+3200-3W 1600+3200 2240 1250 2270 660 1150 4000 3 Capacity Adjustment
    61 BAMH12-2000+4000-3W 2000+4000 2240 1450 2150 820 1350 4500 3 Capacity Adjustment
    62 BAMH12-5000+5000-3W 5000+5000 2360 1500 2700 820 1400 6900 3 Capacity Adjustment
    63 BAMH38.5/√3-1000-1W 38.5/√3 1000 1315 900 2417 660 800 1320 4
    64 BAMH38.5/√3-1600-1W 1600 2000 900 2180 660 800 2000 4
    65 BAMH38.5/√3-2000-1W 2000 2000 900 2300 660 800 2160 4
    66 BAMH38.5/√3-2400-1W 2400 2000 1400 2000 660 1300 2280 4
    67 BAMH38.5/√3-3334-1W 3334 2000 1400 2150 660 1300 3050 4
    68 BAMH38.5/√3-4000-1W 4000 2000 1400 2300 660 1300 3250 4
    69 BAMH38.5/√3-5000-1W 5000 2300 1400 2150 820 1300 4050 4
    70 BAMH38.5/√3-8000-1W 8000 2420 1750 2380 820 1650 5420 4
    71 BAMH42/√3-1000-1W 42/√3 1000 1315 900 2417 660 800 1320 4
    72 BAMH42/√3-1600-1W 1600 2000 900 2180 660 800 2000 4
    73 BAMH42/√3-2000-1W 2000 2000 900 2300 660 800 2160 4
    74 BAMH42/√3-2400-1W 2400 2000 1400 2000 660 1300 2280 4
    75 BAMH42/√3-3334-1W 3334 2000 1400 2150 660 1300 3050 4
    76 BAMH42/√3-4000-1W 4000 2000 1400 2300 660 1300 3250 4
    77 BAMH42/√3-5000-1W 5000 2300 1400 2150 820 1300 4050 4
    78 BAMH42/√3-8000-1W 8000 2420 1750 2380 820 1650 5420 4
