High Voltage Capacitors

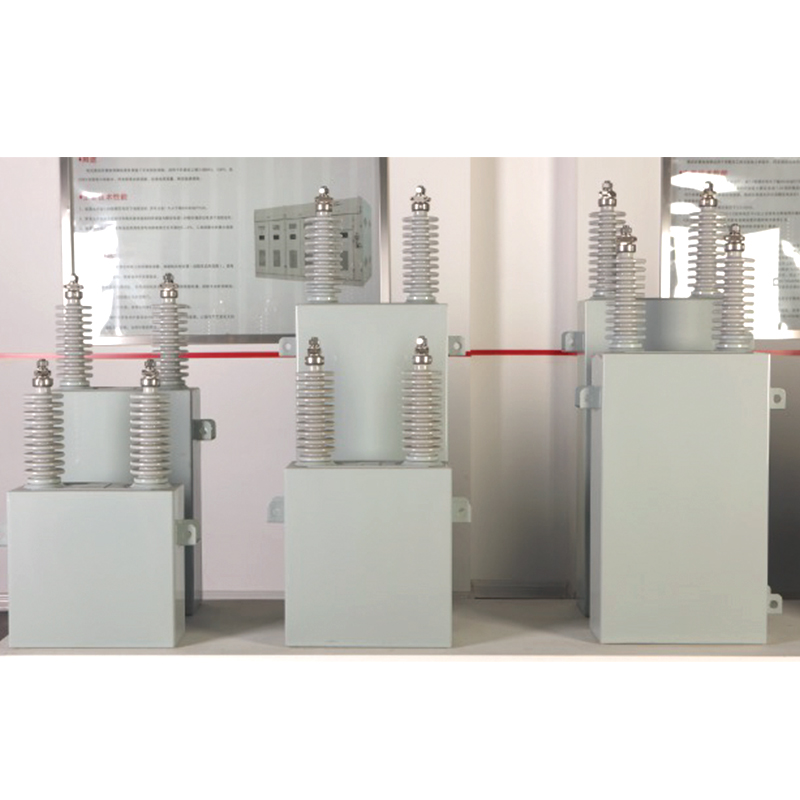

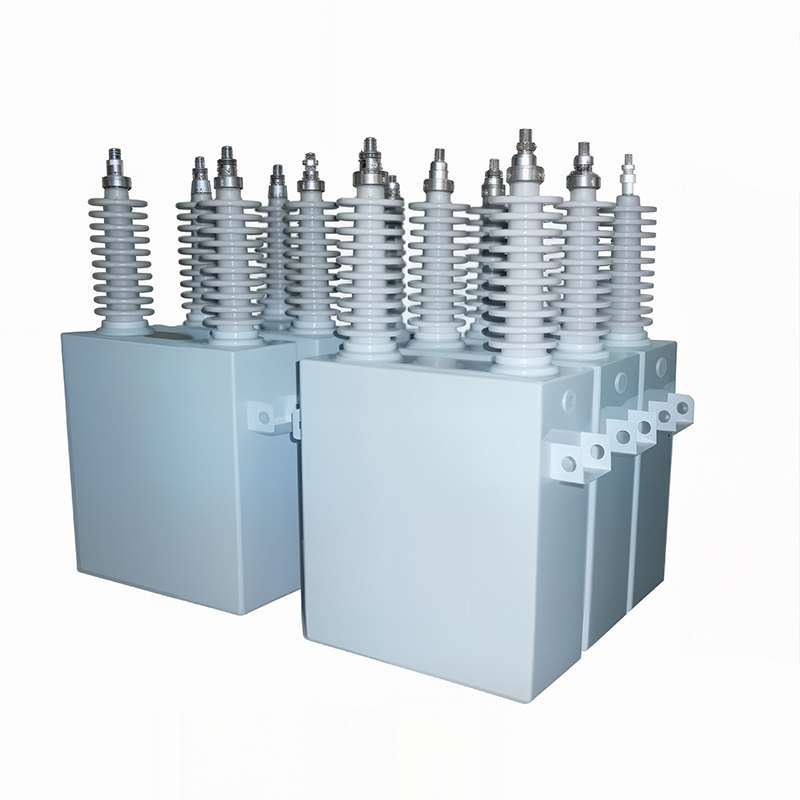

High Voltage Parallel Capacitor Bank
Features and Advantages:
1. Rated voltage range: 3kV~24 kV.
2. Rated capacity range: 30kvar~800kvar.
3. The product utilizes high-quality double-sided roughened polypropylene film and aluminum foil, with a biodegradable and high insulation strength liquid as the impregnant, exhibiting performance such as low dielectric loss and long lifespan.
4. Advanced equipment guarantee: The company possesses advanced processes and equipment, ensuring comprehensive product quality while effectively enhancing product lifespan.
5. Automatic folding of aluminum foil: The aluminum foil electrodes of capacitor elements are automatically folded at the ends and edges, improving the electric field distribution at the edge of the pole plate and enhancing the partial discharge level of the capacitor.
6. Internal fuse protection: The internal fuse serves as the line of defense for the elements, placed between two elements in a concealed structure, completely eliminating phenomena such as fuse rejection, misoperation, and group explosion, ensuring the safe and reliable operation of the capacitor.
7. Built-in discharge resistor: Each series segment is equipped with a discharge resistor, and high-quality high-voltage glass enamel resistors can reduce the residual voltage of the capacitor to below 50V within 10 minutes after power disconnection, ensuring safety.
8. Automatic welding robot: Welding of the capacitor shell, welding of the box wall and cover, and welding of the hanging bracket and shell are all completed by imported robotic workstations, ensuring smooth, sleek, and aesthetically pleasing welds that are strong and leak-proof.
9. Shot blasting of the shell: Removes the oxide layer and dirt from the stainless steel surface, roughens the surface, improves the adhesion strength of the paint, and effectively inspects the quality of the shell welds.
10. Good corrosion resistance: The shell is formed from stainless steel plates, and imported paint spraying robots ensure even and dense painting, resulting in a smooth, delicate, and visually pleasing surface, ensuring the capacitor remains rust-free throughout its lifespan.
