Custom BSMJ-A Split Phase Compensation Shunt Capacitor

Home / Products / Low Voltage Capacitors and Equipment / Low Voltage Power Capacitors / BSMJ-A Split Phase Compensation Shunt Capacitor

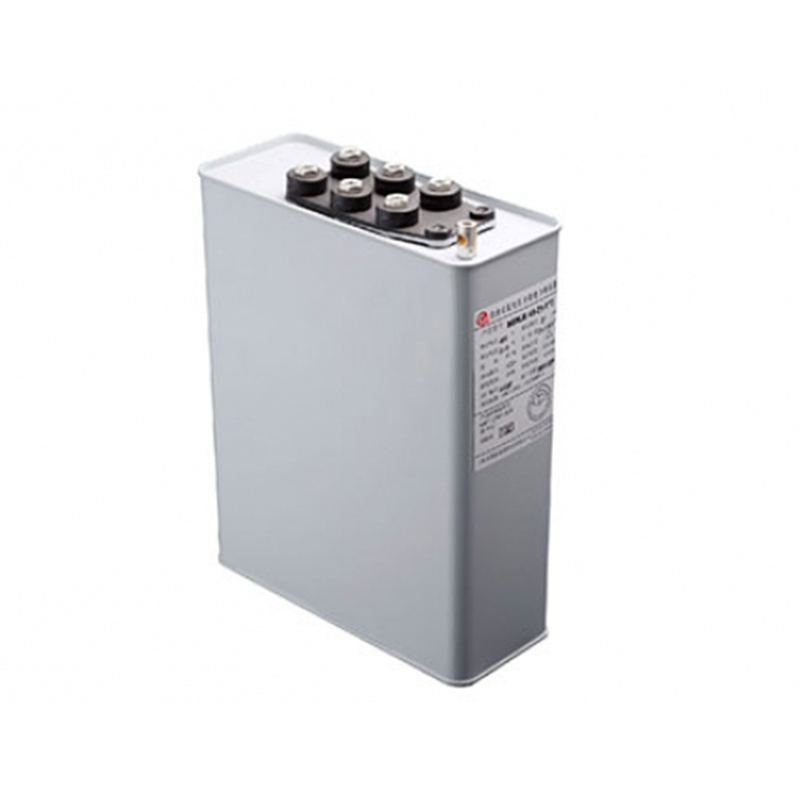

BSMJ-A Split Phase Compensation Shunt Capacitor
  • BSMJ-A Split Phase Compensation Shunt Capacitor
Low Voltage Power Capacitors

BSMJ-A Split Phase Compensation Shunt Capacitor

Introduction
Purpose: The BSMJ-A Split Phase Compensation Shunt Capacitor is used for precise adjustment of three-phase balance by transferring active power between phases in three-phase AC power supply systems. It also compensates for inductive reactive power in the grid.

Product Features:
Rated Voltage: 0.45 kV
Capacity Range: 5~40 kVar
Cast iron casing with internal threaded terminals and built-in overpressure protection.
Low design field strength, long lifespan, low failure rate, and good capacity stability.
Offers three-phase individual compensation, common compensation, and interphase compensation functions, allowing flexible selection.
Surge current performance, suitable for frequent switching operations.

Contact Us
PREV：BSMJ-B Cylindrical Low Voltage Shunt Capacitor
NEXT：BSMJ-A Intelligent Power Capacitor Unit

  • Model

    Rated voltage

    Rated Capacity

    Capacitance

    Rated current

    H

    Structure type

    KV

    KVar

    μF

    A

    mm

    450V phase compensation

    BSMJ0.45-9-1*3-A2

    0.45

    9

    141.5

    6.7

    130

    A2

    BSMJ0.45-15-1*3-A2

    0.45

    15

    235.8

    11.1

    170

    A2

    BSMJ0.45-21-1*3-A2

    0.45

    twenty one

    330.1

    15.6

    210

    A2

    BSMJ0.45-30-1*3-A3

    0.45

    30

    471.6

    22.2

    230

    A3

    BSMJ0.45-40-1*3-A3

    0.45

    40

    628.8

    29.6

    270

    A3

    Model

    Rated voltage

    Rated Capacity

    Capacitance

    Rated current

    D

    H

    Structure type

    KV

    KVar

    μF

    A

    mm

    mm

    250V50Hz split phase compensation

    BSMJ0.25-10-3YN-B2

    0.25

    10

    509.3

    13.3

    86

    240

    B2

    BSMJ0.25-15-3YN-B2

    0.25

    15

    763.9

    20

    116

    220

    B2

    BSMJ0.25-20-3YN-B2

    0.25

    20

    1018.6

    26.7

    116

    220

    B2

    BSMJ0.25-25-3YN-B2

    0.25

    25

    1273.2

    33.3

    116

    250

    B2

    BSMJ0.25-30-3YN-B2

    0.25

    30

    1527.9

    40

    116

    290

    B2

    450V50Hz three-phase compensation

    BSMJ0.45-5-3-B1

    0.45

    5

    78.6

    6.7

    86

    180

    B1

    BSMJ0.45-10-3-B1

    0.45

    10

    157.2

    12.8

    86

    180

    B1

    BSMJ0.45-15-3-B1(B2)

    0.45

    15

    235.8

    19.2

    86

    240

    B1(B2)

    BSMJ0.45-20-3-B2(B1)

    0.45

    20

    314.4

    25.7

    96

    250

    B2(B1)

    BSMJ0.45-25-3-B2(B1)

    0.45

    25

    393.0

    32.1

    116

    250

    B2(B1)

    BSMJ0.45-30-3-B2(B1)

    0.45

    30

    471.6

    38.5

    116

    250

    B2(B1)

    BSMJ0.45-40-3-B2

    0.45

    40

    628.8

    51.3

    116

    290

    B2

    BSMJ0.45-50-3-B2

    0.45

    50

    785.9

    64.2

    136

    290

    B2

    480V50Hz three-phase compensation

    BSMJ0.48-10-3-B1

    0.48

    10

    138.2

    12.0

    86

    180

    B1

    BSMJ0.48-15-3-B1(B2)

    0.48

    15

    207.2

    18.0

    86

    240

    B1(B2)

    BSMJ0.48-20-3-B2(B1)

    0.48

    20

    276.3

    24.1

    96

    250

    B2(B1)

    BSMJ0.48-25-3-B2(B1)

    0.48

    25

    345.4

    30.1

    116

    250

    B2(B1)

    BSMJ0.48-30-3-B2(B1)

    0.48

    30

    414.5

    36.1

    116

    250

    B2(B1)

    BSMJ0.48-40-3-B2

    0.48

    40

    552.6

    48.1

    116

    290

    B2

    BSMJ0.48-50-3-B2

    0.48

    50

    690.8

    60.1

    136

    290

    B2
