Custom BSMJ-B Cylindrical Low Voltage Shunt Capacitor

Home / Products / Low Voltage Capacitors and Equipment / Low Voltage Power Capacitors / BSMJ-B Cylindrical Low Voltage Shunt Capacitor

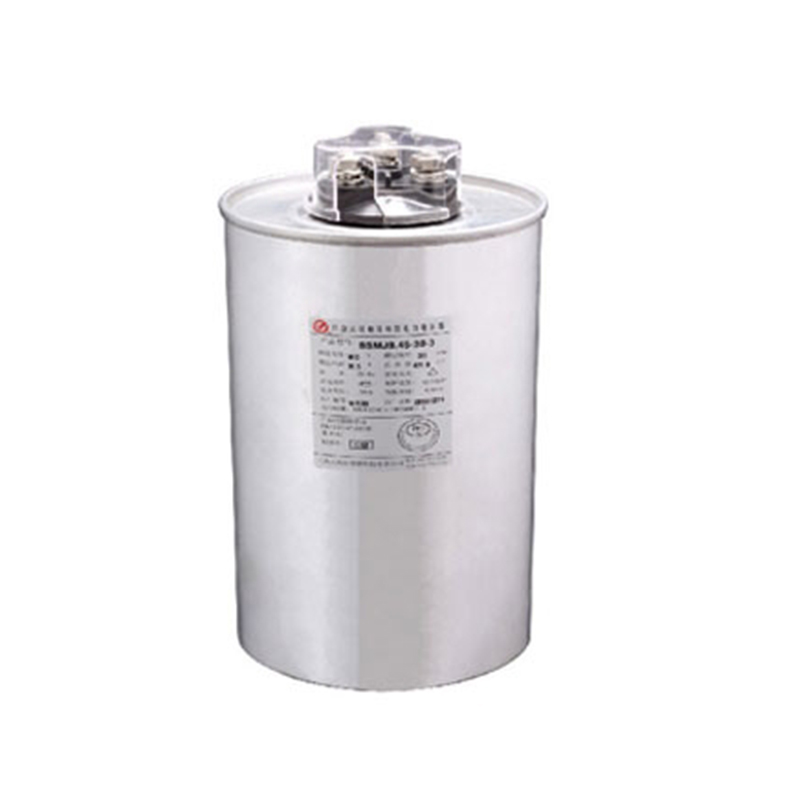

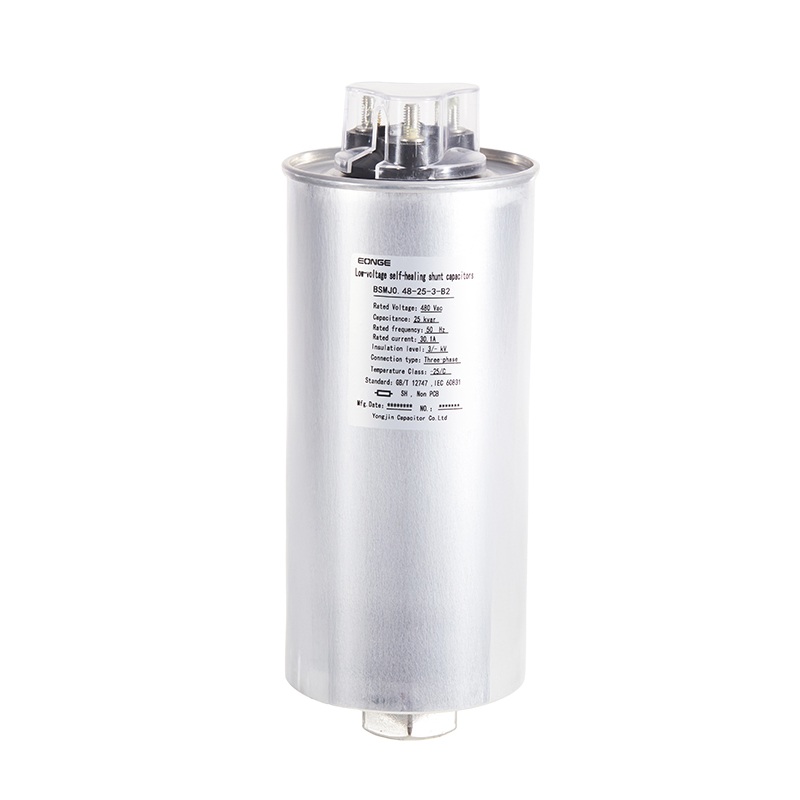

BSMJ-B Cylindrical Low Voltage Shunt Capacitor
  • BSMJ-B Cylindrical Low Voltage Shunt Capacitor
Low Voltage Power Capacitors

BSMJ-B Cylindrical Low Voltage Shunt Capacitor

Introduction
Application: This BSMJ-B Cylindrical Low Voltage Shunt Capacitor is used for precise adjustment of three-phase balance by transferring active power between phases in a three-phase AC power supply system. Additionally, it compensates for inductive reactive power in the grid.

Product Features:
Rated Voltage: 0.45 kV
Capacity Range: 5~40 kVar
Features a cast iron shell with internal threaded terminals and built-in overpressure protection.
Designed for low electric field strength, ensuring a long lifespan and low failure rate, with capacity stability.
Offers three-phase split compensation, common compensation, and interphase compensation functions, allowing flexible selection.
Surge current resistance, suitable for frequent switching operations.

Contact Us
PREV：BKMJ-C Box-type Low Voltage Shunt Capacitor
NEXT：BSMJ-A Split Phase Compensation Shunt Capacitor

  • Model

    Rated voltage

    Rated Capacity

    Capacitance

    Rated current

    D

    H

    Structure type

    KV

    KVar

    μF

    A

    mm

    mm

    250V50Hz split phase compensation

    BSMJ0.25-10-3YN-B2

    0.25

    10

    509.3

    13.3

    86

    240

    B2

    BSMJ0.25-15-3YN-B2

    0.25

    15

    763.9

    20

    116

    220

    B2

    BSMJ0.25-20-3YN-B2

    0.25

    20

    1018.6

    26.7

    116

    220

    B2

    BSMJ0.25-25-3YN-B2

    0.25

    25

    1273.2

    33.3

    116

    250

    B2

    BSMJ0.25-30-3YN-B2

    0.25

    30

    1527.9

    40

    116

    290

    B2

    450V50Hz three-phase compensation

    BSMJ0.45-5-3-B1

    0.45

    5

    78.6

    6.7

    86

    180

    B1

    BSMJ0.45-10-3-B1

    0.45

    10

    157.2

    12.8

    86

    180

    B1

    BSMJ0.45-15-3-B1(B2)

    0.45

    15

    235.8

    19.2

    86

    240

    B1(B2)

    BSMJ0.45-20-3-B2(B1)

    0.45

    20

    314.4

    25.7

    96

    250

    B2(B1)

    BSMJ0.45-25-3-B2(B1)

    0.45

    25

    393.0

    32.1

    116

    250

    B2(B1)

    BSMJ0.45-30-3-B2(B1)

    0.45

    30

    471.6

    38.5

    116

    250

    B2(B1)

    BSMJ0.45-40-3-B2

    0.45

    40

    628.8

    51.3

    116

    290

    B2

    BSMJ0.45-50-3-B2

    0.45

    50

    785.9

    64.2

    136

    290

    B2

    480V50Hz three-phase compensation

    BSMJ0.48-10-3-B1

    0.48

    10

    138.2

    12.0

    86

    180

    B1

    BSMJ0.48-15-3-B1(B2)

    0.48

    15

    207.2

    18.0

    86

    240

    B1(B2)

    BSMJ0.48-20-3-B2(B1)

    0.48

    20

    276.3

    24.1

    96

    250

    B2(B1)

    BSMJ0.48-25-3-B2(B1)

    0.48

    25

    345.4

    30.1

    116

    250

    B2(B1)

    BSMJ0.48-30-3-B2(B1)

    0.48

    30

    414.5

    36.1

    116

    250

    B2(B1)

    BSMJ0.48-40-3-B2

    0.48

    40

    552.6

    48.1

    116

    290

    B2

    BSMJ0.48-50-3-B2

    0.48

    50

    690.8

    60.1

    136

    290

    B2

    Model

    Rated voltage

    Rated Capacity

    Capacitance

    Rated current

    D

    H

    Structure type

    KV

    KVar

    μF

    A

    mm

    mm

    525V50Hz three-phase compensation

    BSMJ0.525-10-3-B1

    0.525

    10

    115.5

    11.0

    86

    180

    B1

    BSMJ0.525-15-3-B1(B2)

    0.525

    15

    173.2

    16.5

    86

    240

    B1(B2)

    BSMJ0.525-20-3-B2(B1)

    0.525

    20

    231.0

    22.0

    96

    250

    B2(B1)

    BSMJ0.525-25-3-B2(B1)

    0.525

    25

    288.7

    27.5

    116

    250

    B2(B1)

    BSMJ0.525-30-3-B2(B1)

    0.525

    30

    346.5

    33.0

    116

    250

    B2(B1)

    BSMJ0.525-40-3-B2

    0.525

    40

    461.9

    44.0

    116

    290

    B2

    690V50Hz three-phase compensation

    BSMJ0.69-10-3-B1

    0.69

    10

    66.9

    8.4

    86

    210

    B1

    BSMJ0.69-15-3-B1

    0.69

    15

    100.3

    12.6

    86

    240

    B1

    BSMJ0.69-20-3-B1(B2)

    0.69

    20

    133.7

    16.7

    96

    250

    B1(B2)

    BSMJ0.69-25-3-B1(B2)

    0.69

    25

    167.1

    20.9

    116

    250

    B1(B2)

    BSMJ0.69-30-3-B2(B1)

    0.69

    30

    200.5

    25.1

    116

    250

    B2(B1)

    240V60Hz three-phase compensation

    BSMJ0.24-5-3-B1

    0.24

    5

    230.3

    12.0

    86

    180

    B1

    BSMJ0.24-10-3-B1(B2)

    0.24

    10

    460.5

    24.1

    86

    210

    B1(B2)

    BSMJ0.24-15-3-B2(B1)

    0.24

    15

    690.8

    36.1

    96

    250

    B2(B1)

    BSMJ0.24-20-3-B2

    0.24

    20

    921.0

    48.1

    116

    220

    B2

    BSMJ0.24-25-3-B2

    0.24

    25

    1151.3

    60.1

    116

    250

    B2

    BSMJ0.24-30-3-B2

    0.24

    30

    1381.6

    72.2

    116

    290

    B2

    480V60Hz three-phase compensation

    BSMJ0.48-10-3-B1

    0.48

    10

    115.1

    12.0

    86

    180

    B1

    BSMJ0.48-15-3-B1

    0.48

    15

    172.7

    18.0

    86

    240

    B1

    BSMJ0.48-20-3-B1(B2)

    0.48

    20

    230.3

    24.1

    96

    250

    B1(B2)

    BSMJ0.48-25-3-B2(B1)

    0.48

    25

    287.8

    30.1

    116

    250

    B2(B1)

    BSMJ0.48-30-3-B2(B1)

    0.48

    30

    345.4

    36.1

    116

    250

    B2(B1)

    BSMJ0.48-40-3-B2

    0.48

    40

    460.5

    48.1

    116

    290

    B2
